LECPServerData format enumeration description
Applied to the parsing or generation format of multi-byte data, it is valid for
4-byteand8-bytedata conversion (only valid forInt32,Int64,UInt32,UInt64data)

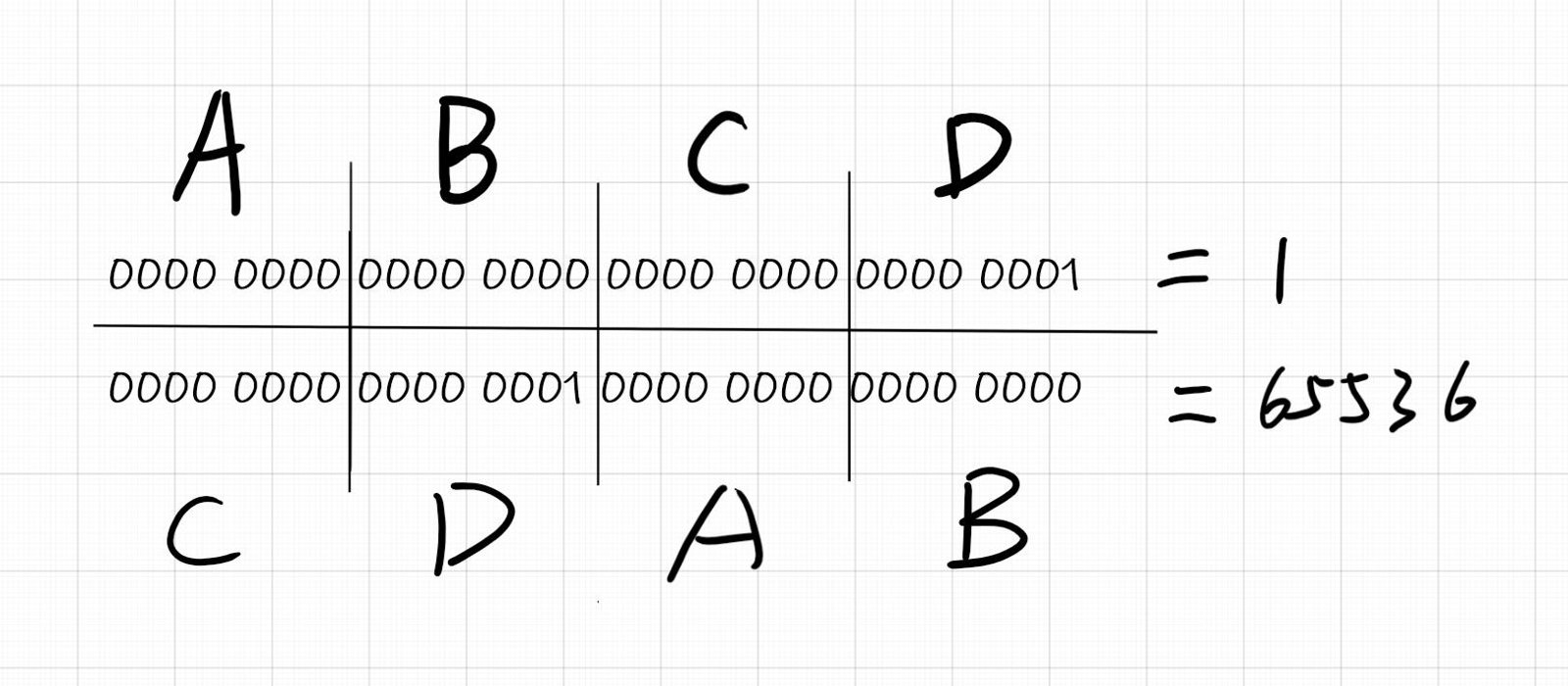

For example, if a PLC stores a value of 1 in ABCD mode, and another PLC reads out the stored BUFFER in CDAB mode, the value becomes 65536.
?> Therefore, we need to understand how the PLC processes 4-byte 8-byte data through the PLC documentation during initialization, and configure it correctly on the LECPServer.
| 成员名称 | 值 | 说明 |
|---|---|---|
| ABCD | 0 | Sort in order |
| BADC | 1 | Reverse by word |
| CDAB | 2 | Reverse by dword (Most PLC default sorting) |
| DCBA | 3 | Sort in reverse order |
