Mitsubishi PLC

LECPServer includes Mitsubishi PLC protocols:

1. Mitsubishi MC (Binary)
2. Mitsubishi MC UDP (Binary)
3. Mitsubishi A-1E Net (Binary)

How to configure

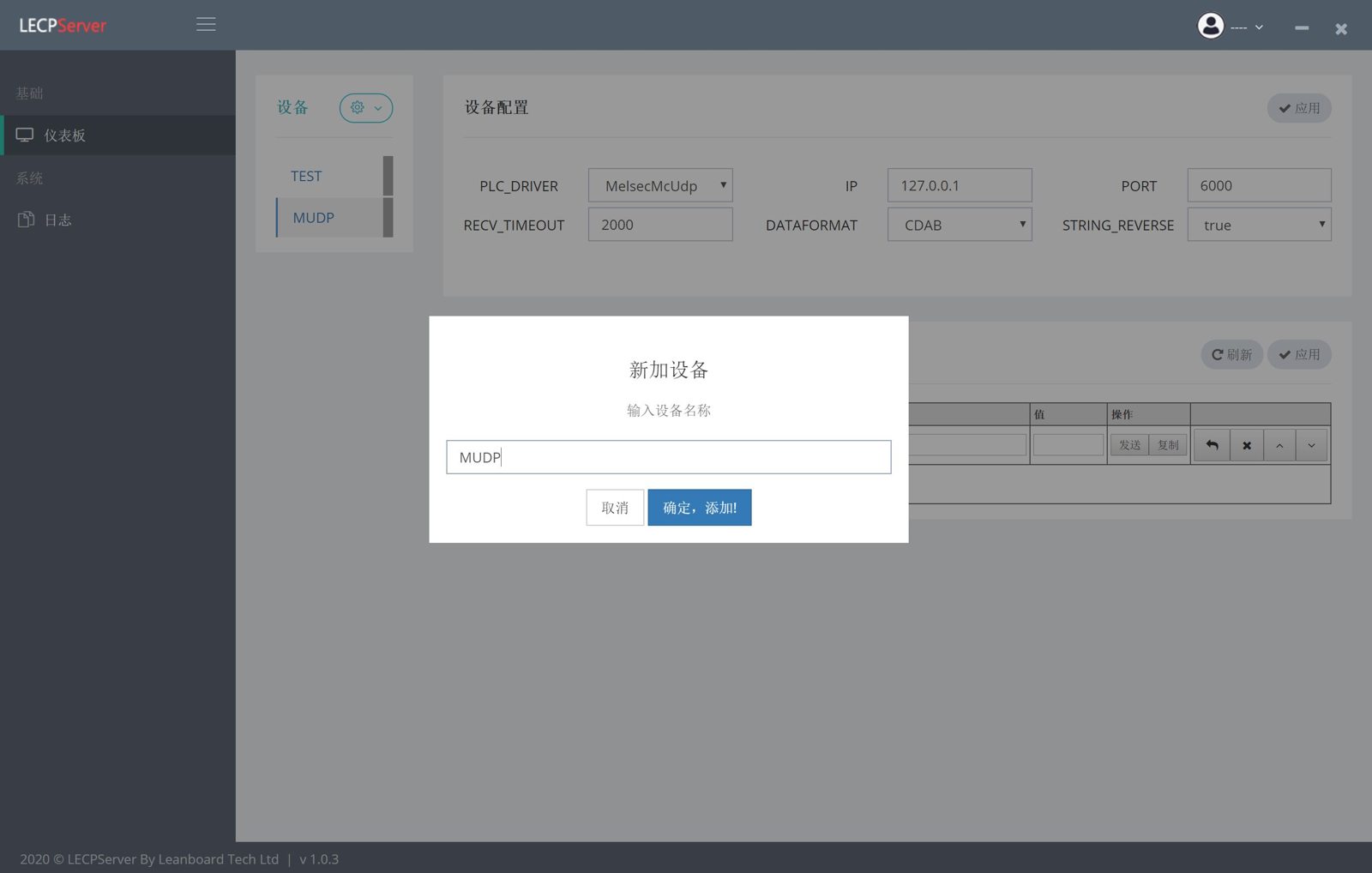

1. Click "Add Device" and fill in the device name, such as "MUDP"

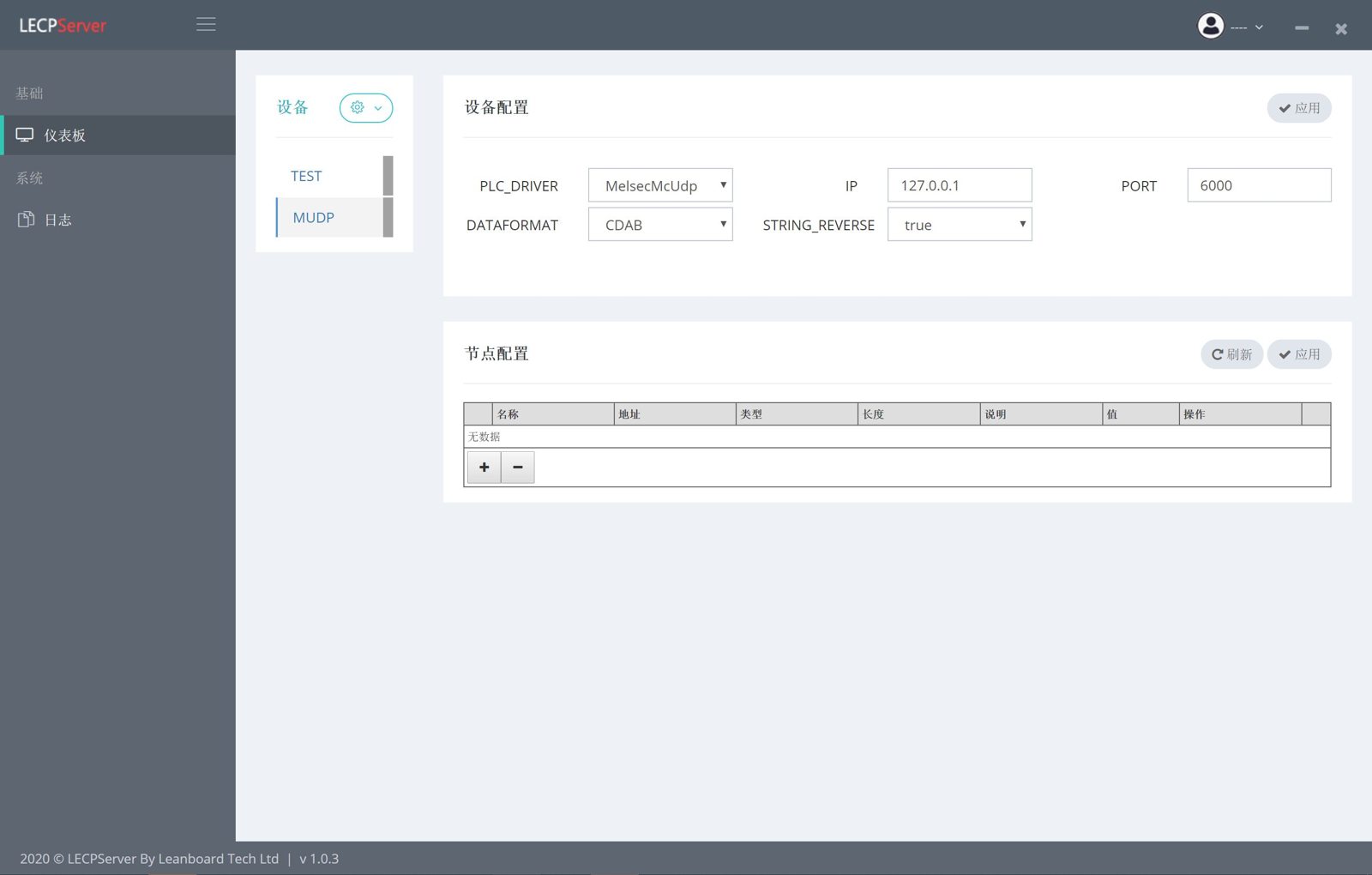

2. Select "MelsecMcUdp" in PLC_DEVICE in the "Device Configuration" form (using Mitsubishi MC UDP protocol)
3. Click the "Apply" button in the "Device Configuration" form, at this time the "MUDP setting value is saved successfully" prompt, which proves that the node has been successfully added to the LECPServer

1. Click the "+" button to add a plc node
2. Enter node name, e.g. "W100"
3. Enter the address of this node by "W100"(read and write W100 in PLC)
4. Select the type of the node，we using type of "Word"

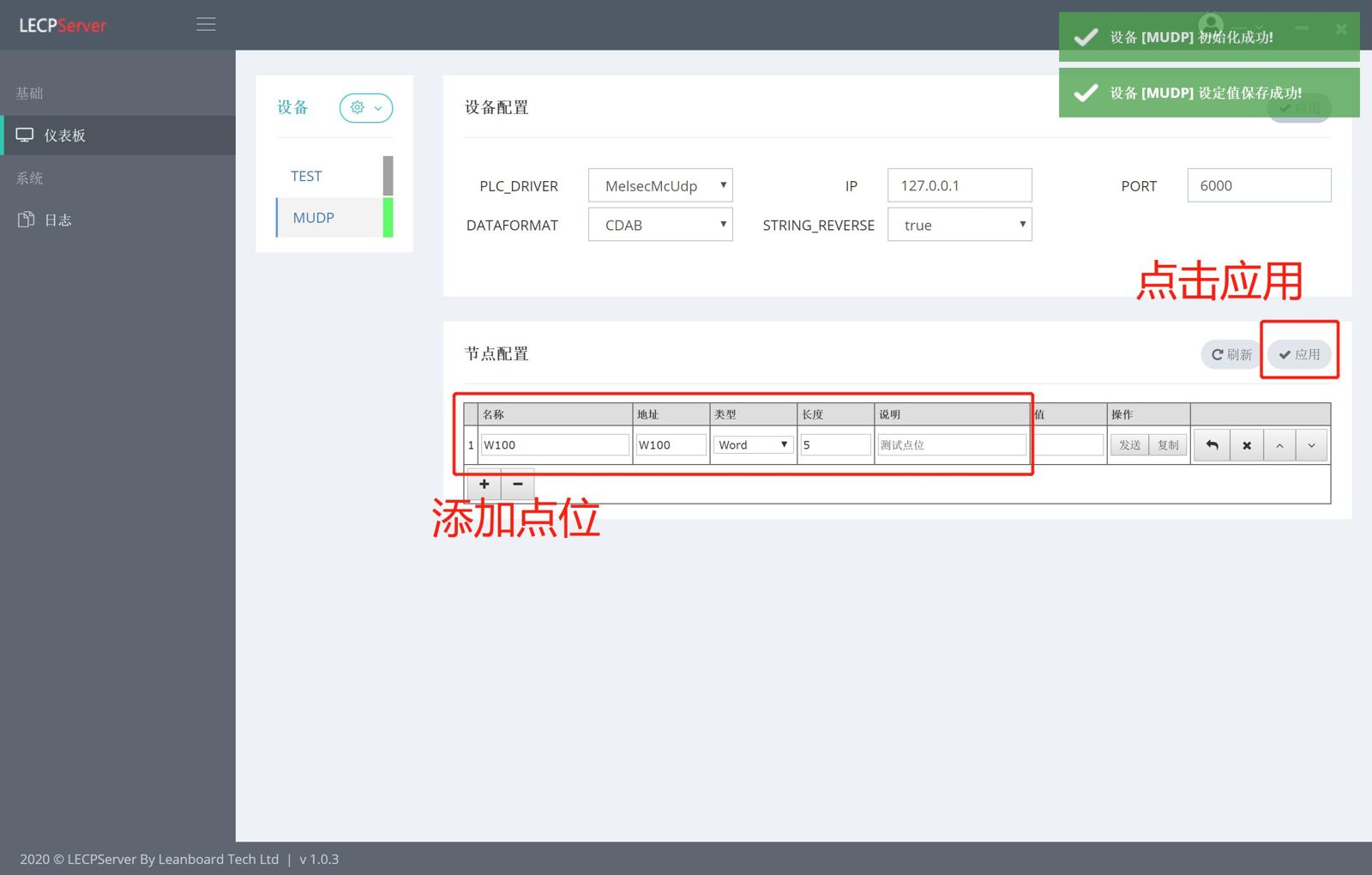

5. Node length, used to set the array length of the node，Here we set it to "5", which means that the node is a Word array consisting of 5 elements

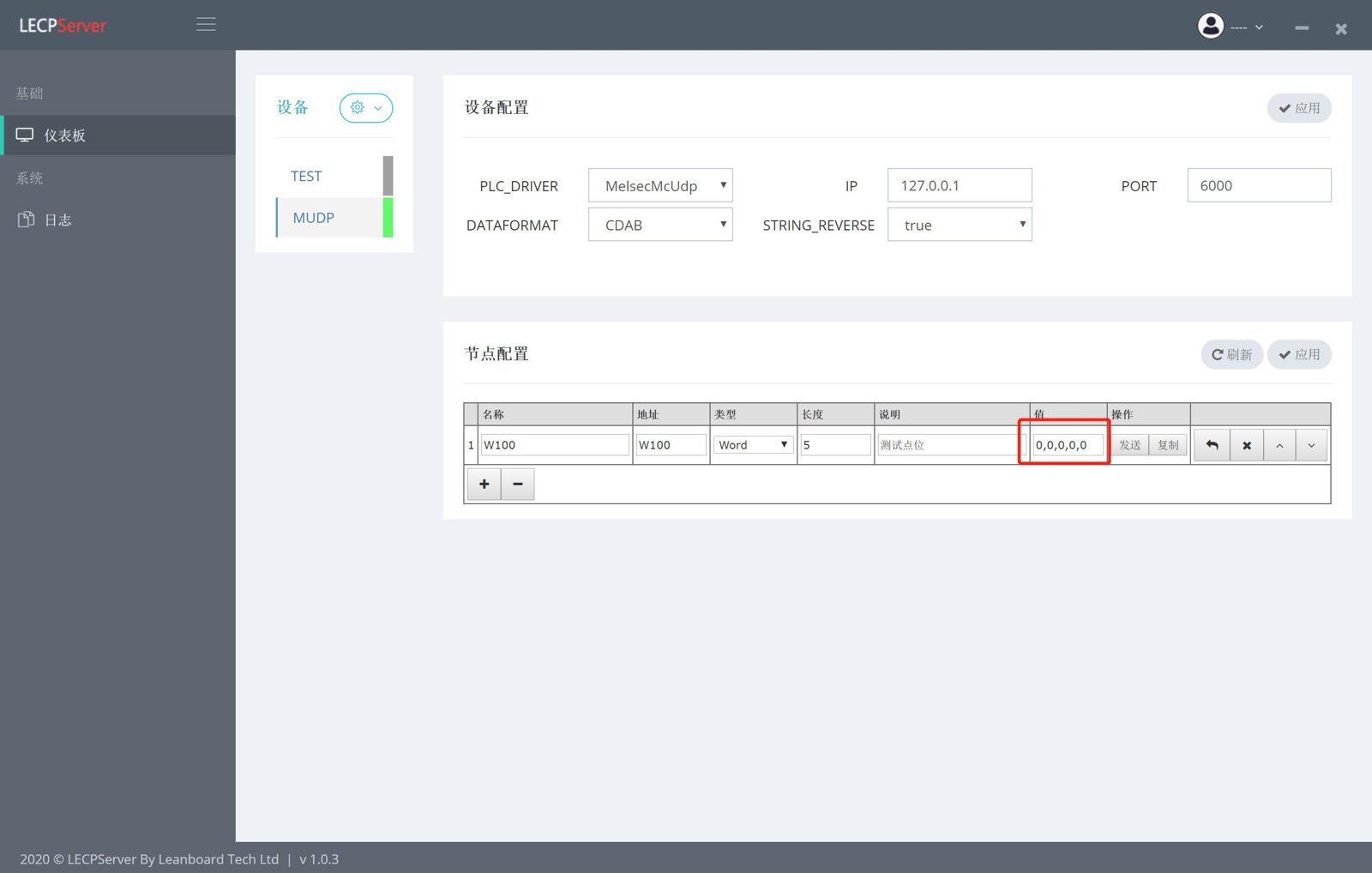

6. Click the "Apply" button, the node has taken effect, and you will see current value appear in the "Value" column of the node

Screenshot
